INDEPENDENT BMW ENGINE EXPERTISE
Know your BMW.
Feel the difference.
NOXEM series NOx emulator will restore the initial power, economy and smooth run of your car’s engine!
BEYOND THE FAULT CODE.N43 / N53 · ENGINEERING & INSIGHT
THE RIGHT ENGINE. THE RIGHT EXPERTISE.
developed for:
BMW
N43 & N53
ENGINES
an alternative for OEM NOx sensors:
11787587129
11787587130
11787590402
01 / UNDERSTAND YOUR ENGINE
Built around
the way you drive.
BMW Engines
BMW N43 Series engine
N43B16 | N43B20
116i | 118i | 120i | 318i | 320i | 520i

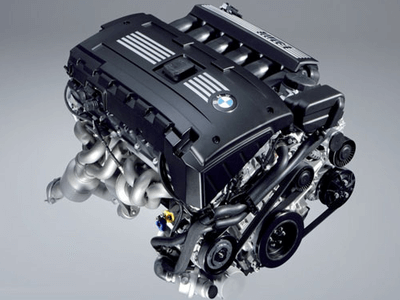

BMW N53 Series engine
N53B25 | N53B30
325i | 330i | 523i | 525i | 530i | 630i (E series)
523i | 528i | 530i (F series)
NOx Emulator
restores
Fuel economy
Smooth idle
Even run at mid/high loads
Full functionality of engine
No more:
30E9; 30EA; 2EAE; 2AF2; 2AF6; 30DA; 30E0; 30E6; 180401; 12C704; etc..
02 / ENGINEERED WITH PURPOSE
A small component.
A different drive.
Understand the symptoms.
See what NOXEM is designed to restore.
The solution
for engine problems
NOx converter error messages:
30EA; 30E9 (for E series)
180401 (for F series)
NOx sensor error messages:
2AF2; 2AF4; 2AF6; 2EAE...
Increased fuel consumption
Rough idle, uneven run and misfires
Difficult start of cold engine
Save money
No need to replace
the NOx catalytic converter!
Save 2000 .. 3000 EUR
No more never-ending stories:
injectors replacement
ignition coils replacement
spark plugs replacement
Lambda probes replacement...

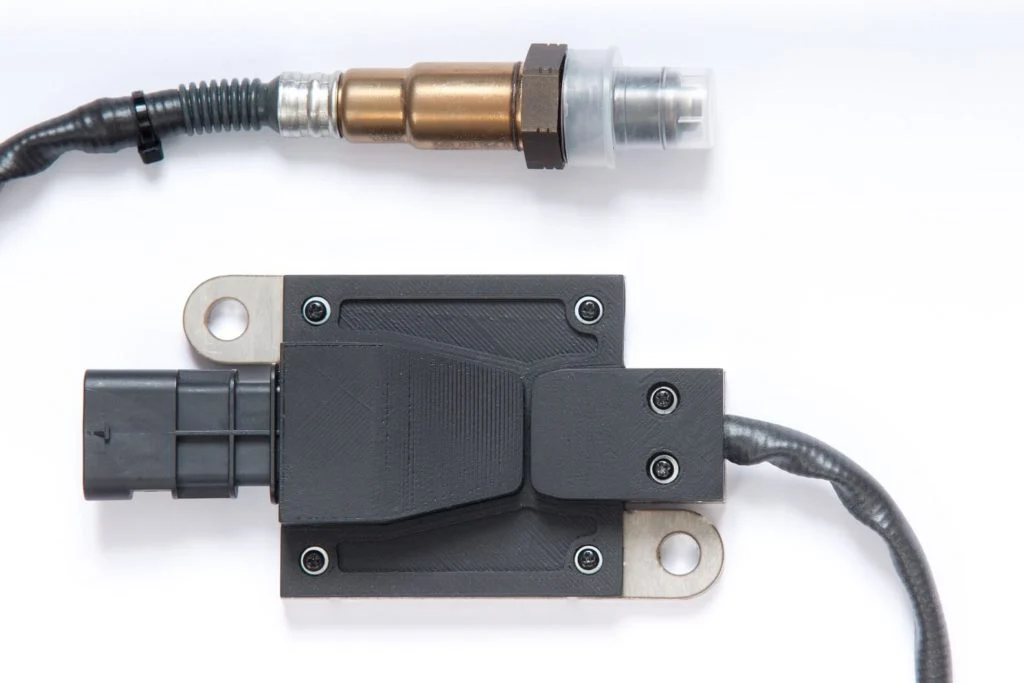

NOXEM
129 | 130 | 402
Alternative for
11787587129
11787587130
11787590402
Plug and play
Lifetime up to 300’000 km
Over-voltage and wrong polarity protection
Industrial temperature range components
03 / FROM SYMPTOM TO SOLUTION
Start with the cause.
Not another part.
A closer look at NOx system faults,
engine behaviour and the next steps.
If you drive BMW with petrol N43/N53 series engine and the engine
- runs unevenly in idle and/or on the go, in cold and/or hot condition;
- the fuel consumption is higher than it used to be,
pay attention to error messages stored in the engine control unit. If the error messages regarding NOx system
replace the OEM NOx sensor with NOXEM series NOx emulator!
The original NOx sensor costs at least EUR 550, NOx catalytic converter – EUR 5000 .. 7000, a lifetime of both items typically do not exceed 100’000 km.
The cost of NOXEM NOx emulator is lower than the cost of NOx sensor, the average lifetime of it – at least 300’000 km, and there is no need to replace the expensive NOx catalytic converter! In addition – thanks to lower fuel consumption, NOXEM NOx emulator will fully payback after 30’000 .. 40’000 km.
The installation of NOXEM NOx emulator is quick and simple, it doesn’t require intervention in the electronics and exhaust system. You will be able to switch back to the original exhaust solution at any moment if you will decide to do that.
Here you can find detailed information about the most popular N43/N53 series engine problem and here – how to check NOx system performance (E series) (F series).
Note: Problems with NOx system (NOx sensor and/or NOx catalytic converter) usually are the reason of following errors (E series; typical situation):
- 29CD .. 29D2: misfires of Xth cylinder;
- 29F4; 29F5: efficiency of CO converter below threshold, Bank 1/2.
Also, error messages regarding fuel trim usually appear. Problems with NOx system also can be the reason of: error messages relating (individual or all) cylinders misfires; low efficiency of CO catalytic converter, 1st/2nd Bank; Lambda probes; incorrect fuel trim (cylinders individual or Bank).

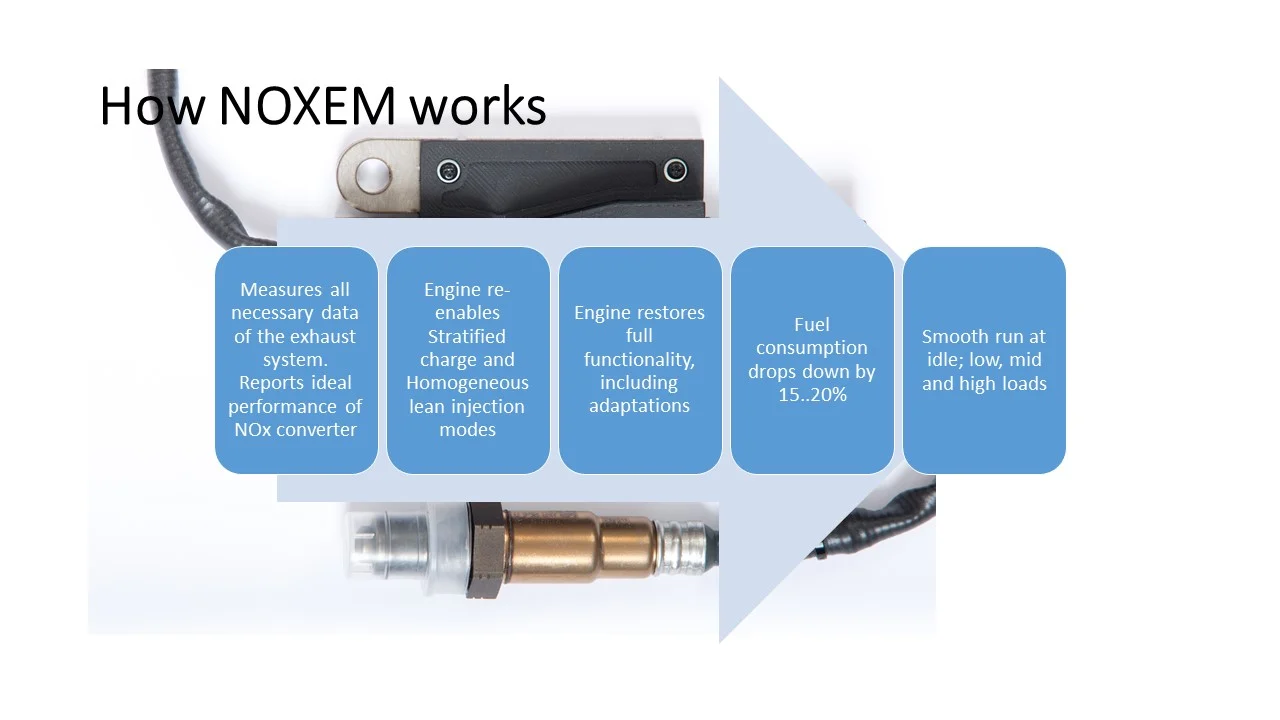

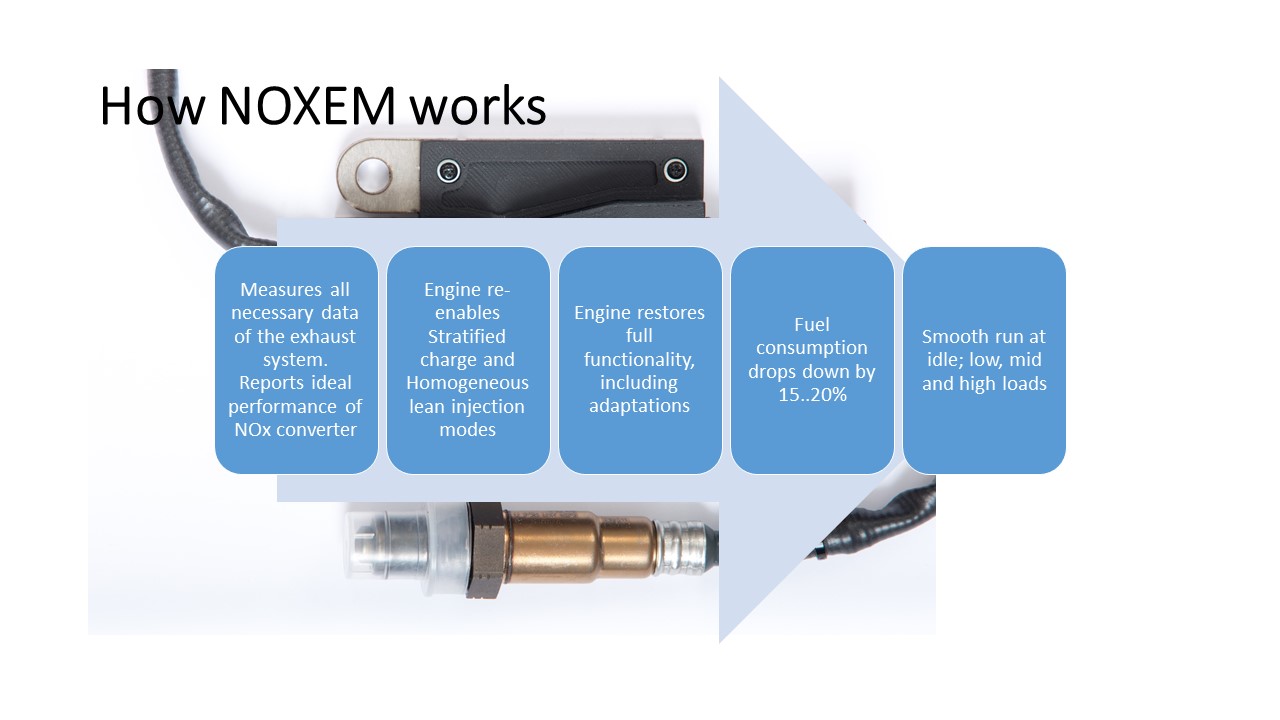

Reduce fuel consumption by 15 .. 20%
Compared with engine with problems (errors) relating to NOx catalytic converter and/or NOx sensor
Restore smooth operation on idle and at low load
Re-enable offset type LTFT at idle and cylinders individual mechanical and fuel mixture corrections
Restore smooth operation at mid/high loads
Re-enable normal operation of multiplicative type LTFT and cylinders individual fuel trims
Facilitates the start of a cold engine
Re-enable additional cold engine LTFT
No more problems and inexplicable error messages relating fuel trim, misfire, CO catalytic converters
04 / INSIDE THE ENGINEERING
Every detail
has a purpose.

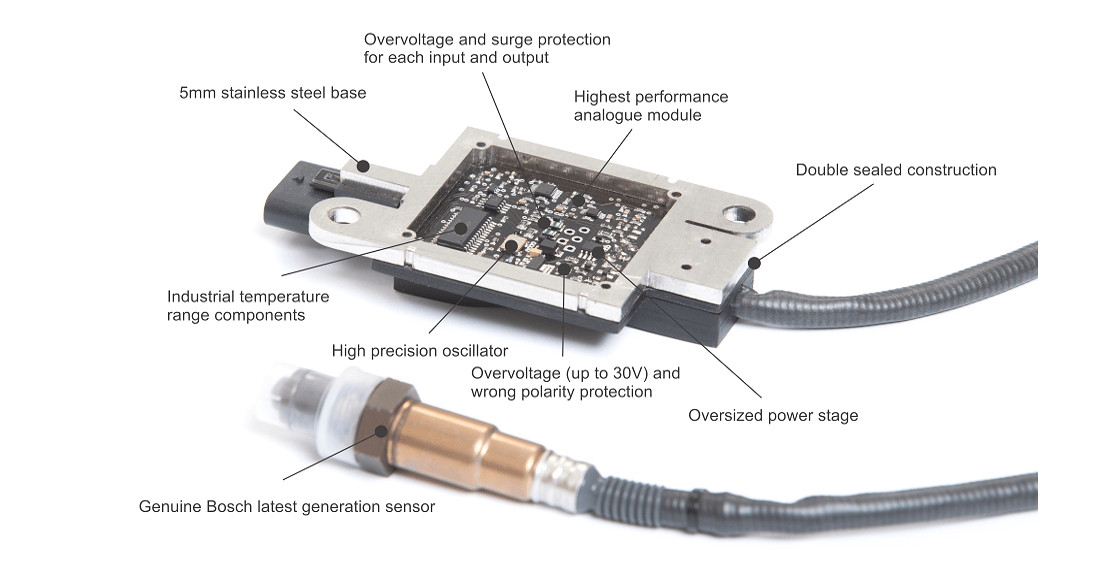

NOXEM series NOx emulator is built using the highest quality components
- Bosch’s latest-generation sensor is controlled and measured by ourselves developed analog control module which provides the highest accuracy of exhaust Lambda value. Now you can use NOx emulator Lambda data as reference
- Up to 30V overvoltage and wrong supply polarity protection guarantees the highest resistance to car’s onboard voltage spikes
- High precision reference frequency oscillator and industrial temperature grade components provide uninterruptible operation in a wide temperature range
- High power oversized sensor control stage reduce heating and facilitate the operation of the electronics module at high temperatures
- Double sealed construction with 5mm stainless steel base plate is a guaranty for long and safe operation in hard environment conditions
Electrical characteristics
- Power supply: +9.0 .. +16.0V DC
- Long-term over-voltage (1 hour): +24.0V DC
- Short-term over-voltage (1 second): +30.0V DC
- Wrong polarity short-term over-voltage (1 second): -30.0V DC
- Maximal current consumption (+14.0V DC; +25oC): 2.5A
- Average current consumption (+14.0V DC; +25oC): 0.8A
- Operation temperature: -40oC .. +105oC
05 / THE KNOWLEDGE BASE
Go beyond
the fault code.
DIAGNOSIS & COMPATIBILITY
List of affected vehicles
List of NOx system error messages
How to evaluate the performance of the NOx sensor (E series)
Diagnostics of NOx sensor (F series)
Replacement of NOx sensor
06 / A SPECIALIST’S PERSPECTIVE
Your engine.
Our full attention.
To each BMW enthusiast, we offer Online diagnostics
for N43/N53 engines!
How does ONLINE diagnostics works?
You are making screenshots using INPA and sending to us
We inspect all information and send back initial report
If necessary further inspection will be requested
Round 2 we inspect received information and give recommendations
We provide assistance until all the problems are soloved
